ZF-JCT Series-switching Current Transformer
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001&ISO14001
Delivery Time:
10-15 work days
Product Description
Product Introduction

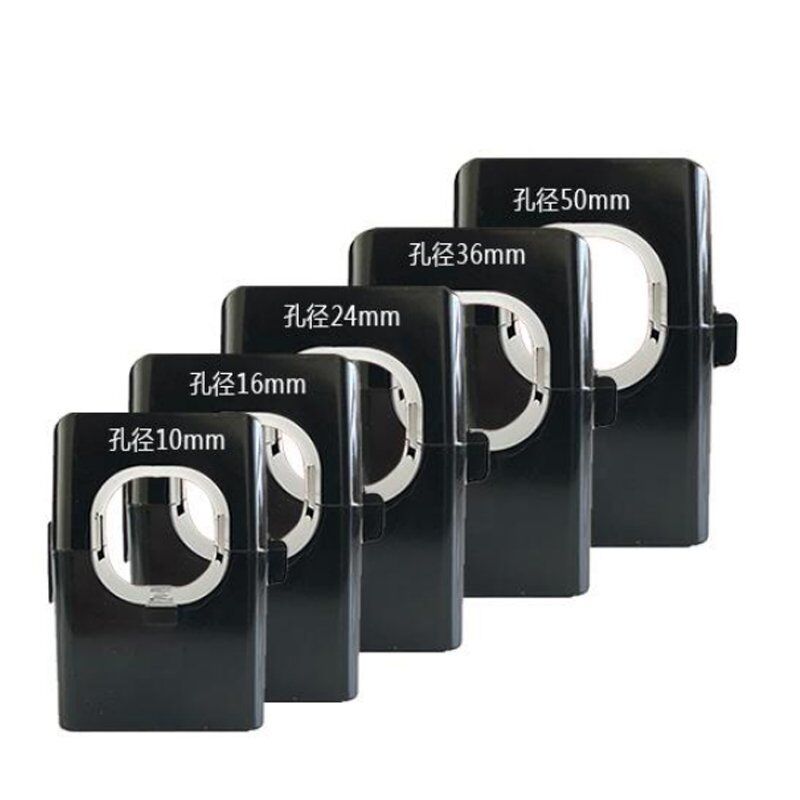

The ZF-JCT Series Switching Current Transformer is an advanced electromagnetic component designed for precise current measurement and energy monitoring in high-frequency switching power systems. Utilizing high-performance nanocrystalline soft magnetic materials, this series ensures exceptional accuracy, stability, and efficiency in applications such as inverters, UPS systems, renewable energy installations, and industrial motor drives. Its compact design and superior magnetic properties make it an ideal solution for modern power electronics requiring high saturation flux density and minimal core losses.
Product Advantages
- High Precision and Linearity: Nanocrystalline cores provide excellent magnetic characteristics, ensuring minimal measurement errors even under high-frequency or high-current conditions.
- Wide Frequency Response: Performs reliably across a broad frequency spectrum, making it suitable for diverse switching power supply and energy conversion systems.
- Low Core Losses: Reduced hysteresis and eddy current losses enhance energy efficiency and minimize heat generation.
- Compact and Lightweight: The high permeability of nanocrystalline materials allows for a smaller form factor without compromising performance.
- Robust Thermal Stability: Maintains stable performance in extreme temperatures, ensuring long-term reliability in demanding environments.
- Customizable Designs: Flexible turns ratio and mechanical configurations to meet specific application requirements.
|
尺寸单位mm |
Φ | H | W1 | W2 | C1 | C2 |
| 10 | 41.1 | 29.6 | 23 | -- | 26.2 | |
| 16 | 47.3 | 36.3 | 30 | -- | 32.5 | |
| 24 | 65 | 53.3 | 43.5 | 41.3 | 33.8 | |
| 36 | 86 | 67.5 | 58 | 50.5 | 42.8 | |
| 50 | 114.4 | 87 | 74.5 | 57.8 | 47.1 |
ZF-JCT10K 尺寸参数
| 尺寸单位 mm |
Φ | H | W1 | W2 | C1 | C2 |
| 10 | 41.1 | 29.6 | 23 | -- | 26.2 |
| 规格 | 额定负载 | 测量范围 | 精度 | 电压等级 |
| 1000/1 | 20Ω | 0-60A | 0.50% | 0.66KV |
| 2000/1 | 20Ω | 0-60A | 0.50% | 0.66KV |
| 3000/1 | 20Ω | 0-80A | 0.50% | 0.66KV |
ZF-JCT24K尺寸参数:
| 额定输入 | 额定输出 | 额定容量 | 精度 | 额定过载 | 电压等级 | 耐压强度 |
| 100A | 5A | 0.1VA | 1.00% | 1.2倍 | 0.72KV | 3KV |
| 150A | 5A | 0.1VA | 1.00% | 1.2倍 | 0.72KV | 3KV |
| 200A | 5A | 0.1VA | 0.50% | 1.2倍 | 0.72KV | 3KV |
| 250A | 5A | 1VA | 0.50% | 1.2倍 | 0.72KV | 3KV |
| 300A | 5A | 1VA | 0.50% | 1.2倍 | 0.72KV | 3KV |
| 350A | 5A | 1VA | 0.50% | 1.2倍 | 0.72KV | 3KV |
| 400A | 5A | 1VA | 0.50% | 1.2倍 | 0.72KV | 3KV |
ZF-JCT16K尺寸参数:
| 尺寸单位 mm |
Φ | H | W1 | W2 | C1 | C2 |
| 16 | 47.3 | 36.3 | 30 | -- | 32.5 |
| 额定输入 | 额定输出 | 额定容量 | 精度 | 额定过载 | 电压等级 | 耐压强度 |
| 100A | 5A | 0.1VA | 1.00% | 1.2倍 | 0.72KV | 3KV |
| 150A | 5A | 0.1VA | 1.00% | 1.2倍 | 0.72KV | 3KV |
ZF-JCT36K 尺寸参数:
| 尺寸单位 mm |
Φ | H | W1 | W2 | C1 | C2 |
| 36 | 86 | 67.5 | 58 | 50.5 | 42.8 |
| 额定输入 | 额定输出 | 额定容量 | 精度 | 额定过载 | 电压等级 | 耐压强度 |
| 100A | 5A | 0.5VA | 1.00% | 1.2倍 | 0.72KV | 2KV |
| 200A | 5A | 1.0VA | 0.50% | 1.2倍 | 0.72KV | 2KV |
| 300A | 5A | 1.5VA | 0.50% | 1.2倍 | 0.72KV | 2KV |
| 400A | 5A | 2VA | 0.50% | 1.2倍 | 0.72KV | 2KV |
| 500A | 5A | 2VA | 0.50% | 1.2倍 | 0.72KV | 2KV |
| 600A | 5A | 2.5VA | 0.50% | 1.2倍 | 0.72KV | 2KV |
ZF-JCT50K尺寸参数:
| 尺寸单位 mm |
Φ | H | W1 | W2 | C1 | C2 |
| 50 | 114.4 | 87 | 74.5 | 57.8 | 47.1 |
| 额定输入 | 额定输出 | 额定容量 | 精度 | 额定过载 | 电压等级 | 耐压强度 |
| 300A | 5A | 2.5VA | 0.50% | 1.2倍 | 0.72KV | 3KV |
| 400A | 5A | 2.5VA | 0.50% | 1.2倍 | 0.72KV | 3KV |
| 500A | 5A | 2.5VA | 0.50% | 1.2倍 | 0.72KV | 3KV |
| 600A | 5A | 2.5VA | 0.50% | 1.2倍 | 0.72KV | 3KV |
| 800A | 5A | 2.5VA | 0.20% | 1.2倍 | 0.72KV | 3KV |
| 1000A | 5A | 5VA | 0.20% | 1.2倍 | 0.72KV | 3KV |
