High Permeability Nanocrystalline Magnetic Core with High Saturation Magnetic Flux Density and High Curie Temperature for Common Mode Inductors
|
High Permeability Nanocrystalline Magnetic Core with High Saturation Magnetic Flux Density and High Curie Temperature for Common Mode Inductors
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
High Permeability Nanocrystalline Magnetic Core
,High Saturation Magnetic Flux Density Common Mode Inductor Core
,High Curie Temperature High Impedance Inductor Core
Product performance:
High permeability µ i (200KHZ), high L and high impedance Z in the high-frequency range
High saturation magnetic flux density 1.2T
Curie temperature is high (580 ° C), with excellent temperature characteristics
Low residual magnetic flux density Br, resistant to direct current
| Basic parameters | |
| Saturated magnetic flux density | Bs = 1.25 T |
| Density | D= 7.2 kg/m³ |
| Vickers hardness | Hv= 880 kg/mm² |
| resistivity | ρ=1.3 µΩcm |
| Crystallization temperature | Tx >510°C |
| Strip thickness | About 18µm |
| Magnetic loss (20KHz, 0.5T) | PFe ≤ 20W/kg* |
| Br/Bs | ≤0.2 |
Magnetic hysteresis curve
Product specifications:

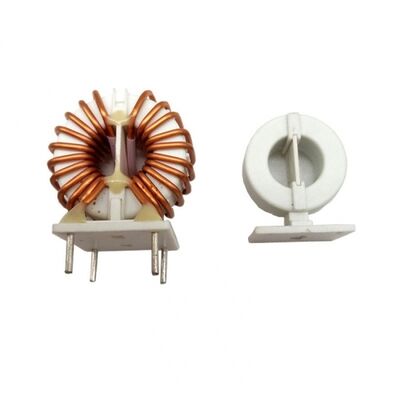

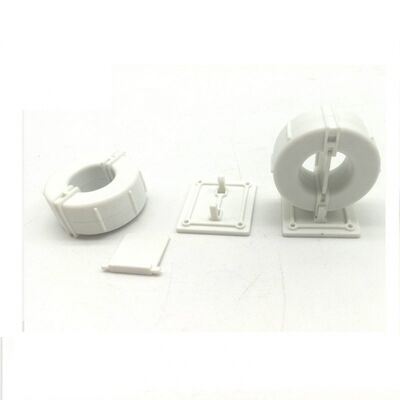

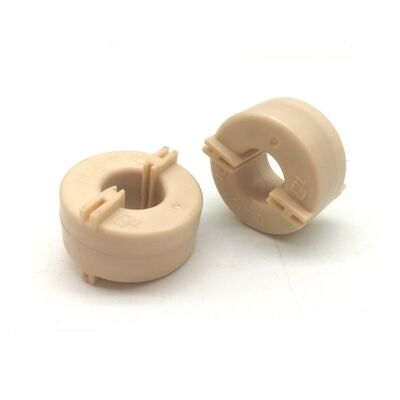

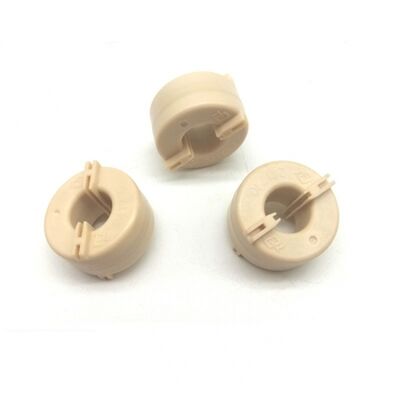

Nanocrystalline common mode inductor cores include three types: single-phase common mode inductor cores, three-phase common mode inductor cores, and four phase common mode inductor cores.
Dimensions of HF-T series high-frequency high impedance mode inductor magnetic core standards
The magnetic core can be customized according to the customer's specification drawings, and the required parameters for customization include:
1. Core size, shell size
2. AL requirements at different frequencies
Main use:
EMC filter
Home applications
Switching mode power supply (SMPS), power supply
Solar inverter
Uninterruptible Power Supply (UPS)
Welding equipment
Wind turbine generator
inverter
