High Permeability Nanocrystalline Magnetic Core for Current Transformers with 1.2T Saturation and Wide Temperature Range
|
High Permeability Nanocrystalline Magnetic Core for Current Transformers with 1.2T Saturation and Wide Temperature Range
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
High Permeability Nanocrystalline Magnetic Core
,1.2T Saturation Current Transformer Core
,Wide Temperature Range Instrument Transformer Core
Product performance:
Compared to silicon steel, higher permeability and testing accuracy
Performance can replace nickel iron magnetic cores
High Bs, 1.2T
Compared to permalloy, lower manufacturing costs
Durable performance range -30 ° C to+180 ° C
Product specifications:

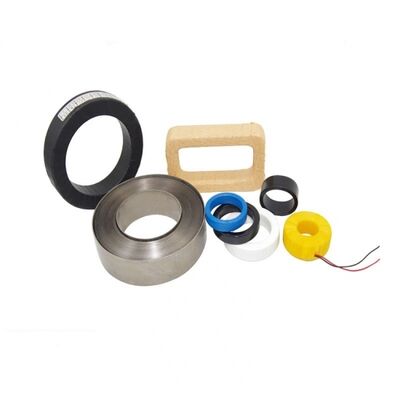

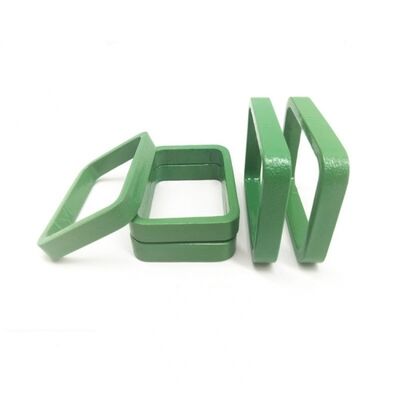

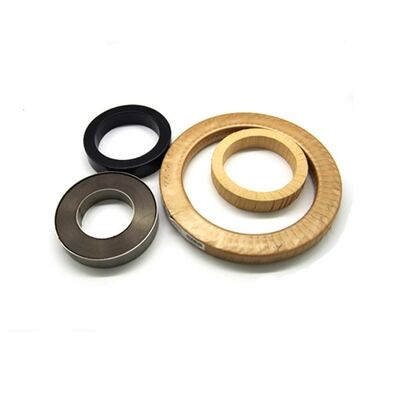

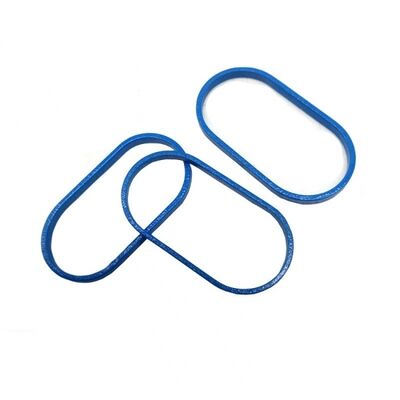

Nanocrystalline magnetic cores for instrument current transformers are widely used in low-voltage, medium voltage, and high-voltage instrument current transformers. The magnetic core includes circular, rectangular, and track type, and the packaging method is divided into stainless steel+PCB shell, DMC plastic shell, epoxy resin packaging, wrinkled paper packaging, etc.
The magnetic core can be customized according to the customer's specification drawings, and the required parameters for customization include:
1. Core size, shell size
2. Turn ratio of current transformers
3. Capacity (VA)
4. Accuracy
Main use:
Nanocrystalline alloy transformer cores are widely used in precision current transformers with accuracy levels of 0.2, 0.2 seconds, and 0.1 due to their excellent magnetic properties such as high permeability, high saturation magnetic induction, and low cost. They are also used in gas insulated or oil immersed switchgear, low-voltage, medium voltage, and high-voltage switchgear, power systems, power systems, relay protection, and energy monitoring devices.
