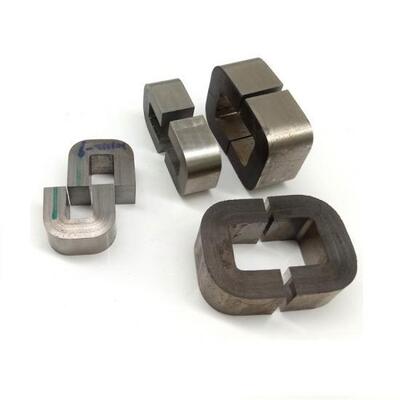

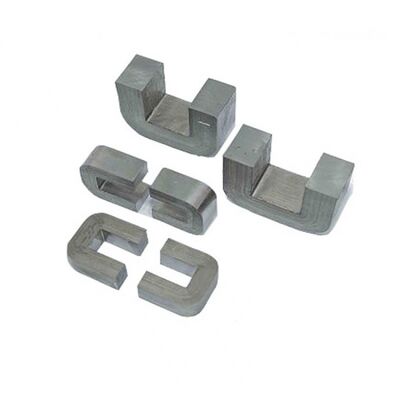

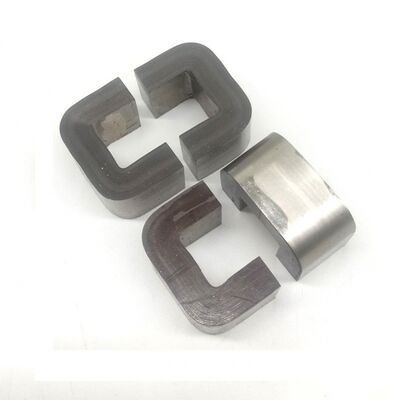

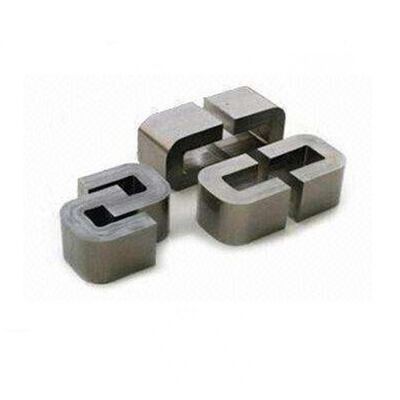

Iron Based Amorphous C-type Cutting Magnetic Core with High Saturation Magnetic Flux Density, Low Magnetic Core Loss, and Low Temperature Rise for Industrial Applications
|
Iron Based Amorphous C-type Cutting Magnetic Core with High Saturation Magnetic Flux Density, Low Magnetic Core Loss, and Low Temperature Rise for Industrial Applications
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001&ISO14001
Delivery Time:
10-15 work days
Highlight:
High Saturation Magnetic Flux Density AMCC Magnetic Core
,Low Magnetic Core Loss C-type Cutting Magnetic Core
,Low Temperature Rise Iron Based Amorphous Magnetic Core
Product Description
Product performance:
High saturation magnetic flux density -1.56 T
Low density - reduces weight and volume by up to 50%
Low temperature rise - working temperature -55 ° C~130 ° C, designed to be smaller and more compact
Low magnetic core loss - made of 20-30 µ m fine amorphous tape
| Magnetic loss test | |
| Magnetic induction density | B=0.037T |
| Frequency | f=16KHz |
| Testing instruments | 2010SA AC Soft Magnetic Tester |
| Iron loss | pFe “≤ 1.2 W/kg |
| AL testing | |
| Attention: |
| 1. Iron loss test and AL test shall be conducted in accordance with GB/T 19346-2003 |
| 2. By adjusting the magnetic core gap, we can obtain different magnetic permeability and inductance values |
Product specifications:
The standard AMCC series magnetic cores cover AMCC4 to AMCC1000
Main use:
UPS and SMPS power factor correction choke
UPS harmonic filtering inductance
High power outdoor industrial ballast
Welding power supply
High speed railway power system
Choke coil for DC/DC converters
Normal mode choke coil
Choke coils for adapters and battery chargers
PFC choke
