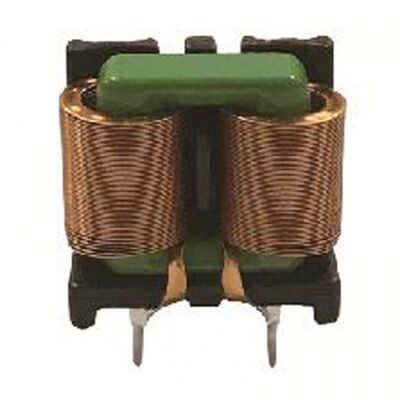

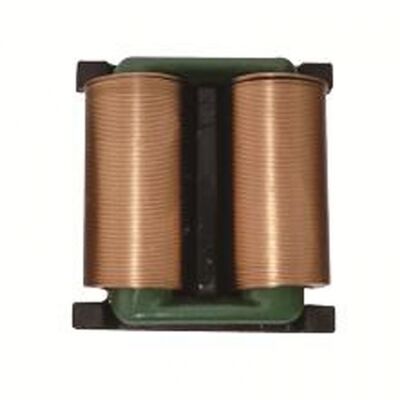

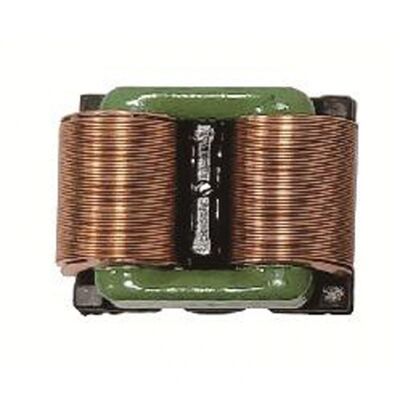

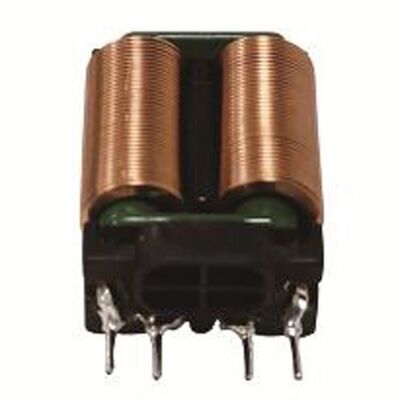

Flat Wire Transformer with High Current Density Minimal Distributed Capacitance and Closed Circuit Design for Power Applications
|
Flat Wire Transformer with High Current Density Minimal Distributed Capacitance and Closed Circuit Design for Power Applications
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
High Current Density Flat Wire Transformer
,Minimal Distributed Capacitance Common Mode Inductor
,Closed Circuit Design Magnetic Core Inductor
Product performance:
Compared with traditional circular wires, flat wires have better performance, higher current density (up to 1.5-2.0 times per unit current density), and smaller volume (0.5-1.0 times).
Minimally distributed capacitance, smaller DC resistance, and better heat dissipation.
Closed circuit design, less magnetic leakage, stable impedance balance.
The machine is fully automatic for winding, ensuring better and more stable quality, saving production costs, and improving production efficiency.
Stronger insulation layer enhances service life.
Product series:
SQ series--SQ1010 SQ1212 SQ1515 SQ1918 SQ2018 SQ2219 SQ2418 SQ2820 SQ3324 SQ2219 SQ2319 SQ2018 SQ2118
SMD series
|
Basic parameters |
|
|
Magnetic Core&Wire |
Rectangular enclosed magnetic core and automatic winding flat wire |
|
Rated voltage |
AC / DC80V ~ 280V |
| Dielectric Strength |
AC2.0KV 60SEC |
| Insulation resistance | 100MΩ Min. DC 500V |
| Flammability level | UL 94 V-0 |
| Working temperature | ‘-40°C ~ + 125°C (Temperature rise including coils) |
| Storage temperature | -40°C ~ + 125 °C |
Temperature and current curve:
SQ series common mode impedance and attenuation curve:
Main applications:
Flat wire transformers provide a perfect replacement for traditional conventional CMC and are widely used in various power application solutions, including LCD TVs, power adapters, and switching power supplies, LED ultra-thin power supply, LED driver circuit, TP power supply, industrial power supply, computer power supply, electric vehicles, solar energy, automotive electronic equipment, industrial equipment, office automation equipment, household appliances, digital products, inverters, etc.
