High Precision Current Transformer with Wide Linear Range and Small Size for Electrical Detection
|
High Precision Current Transformer with Wide Linear Range and Small Size for Electrical Detection
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
High Precision Current Transformer
,Wide Linear Range Instrument Transformer
,Small Size Current Transformer
Product performance:
High precision, wide linear range of output current
High electrical strength (4000Vac/1 minute) and good stability
Small size and beautiful appearance
PCB direct insertion installation
| Material characteristics | |
| Saturation induction density | Bs = 1.2 T |
| Material permeability | µo >8x10⁴ Gs/Oe |
| Crystallization temperature | Tx >510℃ |
| Vickers hardness | Hv= 880 kg/mm² |
| Curie temperature | Tc >570°C |
| Density | ρ = 7.2 g/cm³ |
| Resistivity | r = δ ≥130µΩcm |
| Thickness | 29~35µm |
| Lamination coefficient | 0.75~0.82 |
Electrical specifications
| Specifications | ||||
| Category | CT01A | CT01B | CT01C | CT01D |
| Rated current | 5A | 20A | 60A | 200A |
| 10A | 40A | 120A | ||
| Current ratio | 5A/2mA | 20A/8mA | 60A/24mA | 200A/80mA |
| 10A/4mA | 40A/16mA | 120A/48mA | 200A/100mA | |
| Accuracy level | 0.1,0.2,0.5,1.0,3.0,5.0 | |||
| Rated frequency | 50/60Hz | |||
Product specifications:

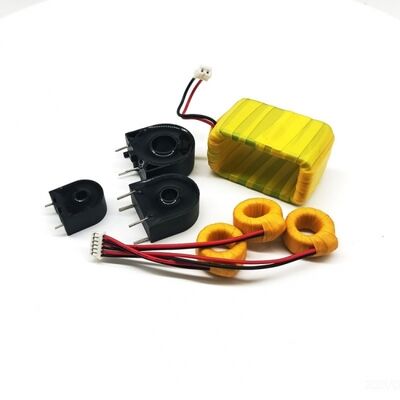

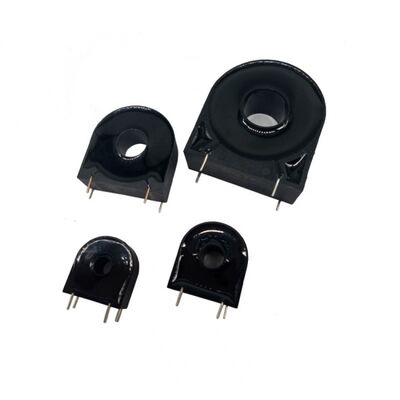

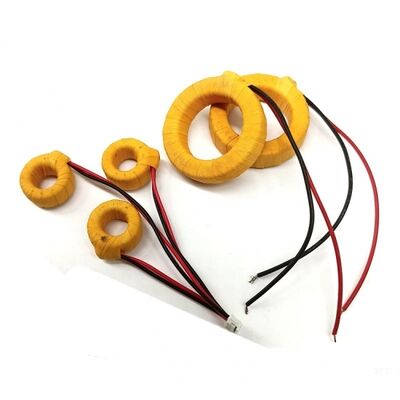

Our products cover needle type precision current transformers and plug-in lead type precision current transformers.
Our standard product specifications and parameters
Precision current transformers can be customized according to customer specifications and drawings. The required parameters for customization include:
1. Transformer turn ratio, initial current, load resistance
2. The minimum diameter of the inner hole of the transformer
3. Transformer size and accuracy
Main use:
Electricity meter
SENECA Transducers
Precision power meters and other electrical detection devices
Overcurrent protection circuits for horses and other electrical equipment
