Precision Current Transformer Core with High Initial Magnetic Permeability, High Saturation Induction Intensity, and Good Temperature Stability
|
Precision Current Transformer Core with High Initial Magnetic Permeability, High Saturation Induction Intensity, and Good Temperature Stability
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001&ISO14001
Delivery Time:
10-15 work days
Highlight:
High Initial Magnetic Permeability Current Transformer Core
,High Saturation Induction Intensity Magnetic Core
,Good Temperature Stability Instrument Transformer Core
Product Description

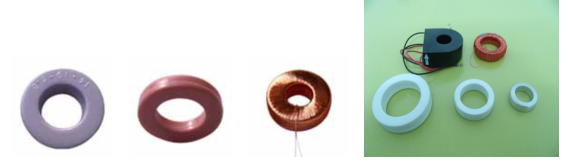

Magnetic core advantages:
1. High initial magnetic permeability and low coercivity: improve detection accuracy.
2. High saturation induction intensity: Compared with permalloy materials, it can be applied to detection in a larger current range.
3. Good temperature stability.
4. Excellent cost performance: can replace permalloy, supermalloy, and microsil.
材料特性:
| 材质 | 铁基纳米晶 |
| 磁饱和感应强度 (T) | 1.25 |
| 磁导率(μ)at 0.08 A/m | 80000-200000 |
| 矫顽力Hc(A/m) | 0.8 |
| 居里温度(℃) | 560 |
| 密度d(kg/m³) | 7.2x10³ |
规格:
| 型号 | 外壳尺寸(mm) | 伏安特性 | ||||
| OD | ID | H | N1:N2 | I(mA) | U(mV) | |
| ZF-CT-21*13*10 | 24 | 11.5 | 13 | 1:1 | 10 | 0.28 |
| ZF-CT-13*10*10 | 15 | 8.5 | 12 | 1:1 | 10 | 0.2 |
| ZF-CT-18*13*5 | 19.6 | 11.6 | 6.4 | 1:1 | 2.73 | 0.006 |
| ZF-CT-19*14*6.5 | 22.3 | 12 | 9.5 | 1:1 | 10 | 0.2 |
| ZF-CT-19*14*8 | 21.6 | 12 | 11 | 1:1 | 50 | 2 |
| ZF-CT-21*13*10 | 24 | 11.6 | 13 | 1:1 | 6.14 | 0.15 |
| ZF-CT-21*14*20 | 24.7 | 11.3 | 23 | 1:1 | 50 | 9 |
| ZF-CT-21*16*6.5 | 24 | 14.5 | 9.4 | 1:1 | 10 | 0.07 |
| ZF-CT-21*16*10 | 24.5 | 14.2 | 12.7 | 1:1 | 10 | 0.25 |
| ZF-CT-23*16*10 | 25 | 14.1 | 13 | 1:1 | 6.9 | 0.15 |
| ZF-CT-25*19*6.5 | 28 | 17.5 | 9.4 | 1:1 | 10 | 0.07 |
| ZF-CT-26*18*10 | 28.9 | 16.6 | 13 | 1:1 | 10 | 0.25 |
| ZF-CT-28*18*15 | 31 | 15.2 | 17.7 | 1:1 | 4.07 | 0.12 |
| ZF-CT-34*28*8 | 36 | 25 | 10 | 1:1 | 20 | 0.26 |
| ZF-CT-50*40*10 | 54 | 37 | 14 | 1:1 | 20 | 0.28 |
Attention: All the data listed in this catalogue are got from optimum-annealed samples. When these ribbons are made into cores, there may be some variation of the property according to processing technique. All the data here are only for references, but not for guaranty of any order. Cores with other specifications can be provided concerning to customer’s demand.
