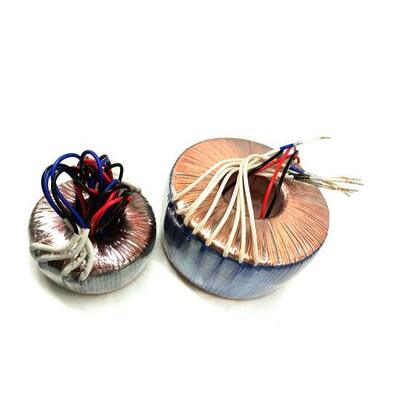

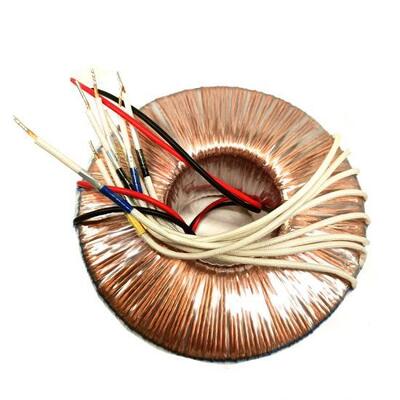

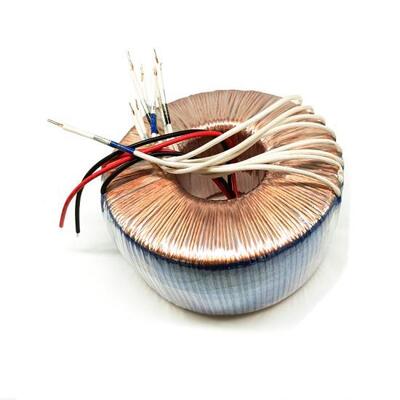

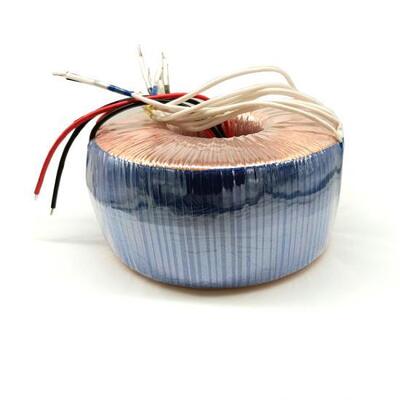

Ring Output Transformer with Nanocrystalline Magnetic Core High Temperature Resistance and 100% Copper Wire for Electronic Tube Amplifiers
|
Ring Output Transformer with Nanocrystalline Magnetic Core High Temperature Resistance and 100% Copper Wire for Electronic Tube Amplifiers
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001&ISO14001
Delivery Time:
10-15 work days
Highlight:
Nanocrystalline Magnetic Core Ring Output Transformer
,High Temperature Resistance Electronic Tube Amplifier Transformer
,100% Copper Wire Output Transformer
Product Description
Product advantages:
Magnetic core: low power consumption and high Bs
Insulation pipe: High grade and high insulation strength
Polyester film tape: High temperature resistance, 94V-1 grade, withstand voltage of 3KV
Lead wire: High temperature resistant, tin plated, 100% copper wire
Winding wire: 100% copper wire, resistant to high temperature of 155 ℃
Electrical performance:
| Basic parameters | |
| Type | Ring transformer |
| Product Name | Output Transformer |
| Magnetic core | Nanocrystalline sprayed magnetic core, size 162 * 80 * 70 (35+35) mm, split in half, air gap 2 * 0.25mm |
| Coil |
Junior: 230Ts * 12 layers of copper wire with a diameter of 0.3mm=2760Ts (single layer winding) Secondary: ∅ 0.2mm * 35 LITZ line 46Ts * 4 zones |
| Protection level | Isolate with fiberglass tube and tin plated 10mm at the end |
| Protection level | IP00 |
| Authentication | ISO9001,ISO14001,ISO45001 |
Reference specifications:
| Rated power | Efficacy | No load loss | Diameter | Height | Weight |
| 15VA | 86% | 0.31W | 59mmm | 40mm | 0.42KG |
| 30VA | 86% | 0.43W | 70mm | 38mm | 0.54KG |
| 50VA | 86% | 0.52W | 81mm | 43mm | 0.71KG |
| 75VA | 86% | 0.60W | 94mm | 41mm | 0.95KG |
| 100VA | 87% | 1.14W | 92mm | 57mm | 1.34KG |
| 150VA | 90% | 1.37W | 119m | 46mm | 2.12KG |
| 200VA | 91% | 1.95W | 121mm | 60mm | 2.84KG |
| 250VA | 92% | 2.02W | 132mm | 57mm | 3.24KG |
| 300VA | 93% | 2.10W | 132mm | 62mm | 3.58KG |
| 500VA | 94% | 3.12W | 158mm | 64mm | 5.50KG |
| 750VA | 96% | 4.84W | 169mm | 80mm | 7.58KG |
| 1000VA | 96% | 6.94W | 202mm | 75mm | 10.42KG |
| 2000VA | 98% | 11.42W | 208mm | 89mm | 16.34KG |
