Micro Precision Voltage Transformer with Nanocrystalline Core, High Accuracy Class 0.2, and Compact 20mm Design for Industrial Automation
|
Micro Precision Voltage Transformer with Nanocrystalline Core, High Accuracy Class 0.2, and Compact 20mm Design for Industrial Automation
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001&ISO14001
Delivery Time:
10-15 work days
Highlight:
Nanocrystalline Core Voltage Transformer
,High Accuracy Class 0.2 Precision Transformer
,Compact Design 20mm Micro Transformer
Product Description

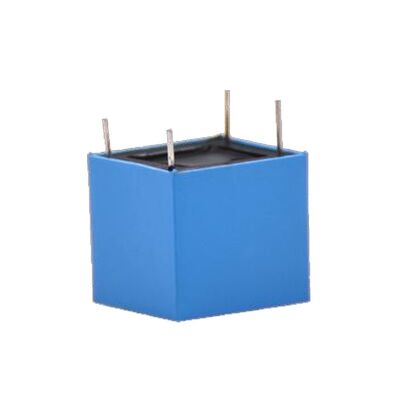

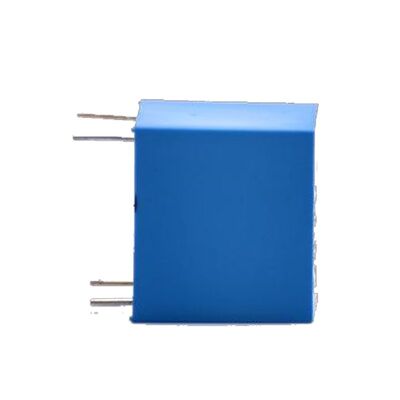

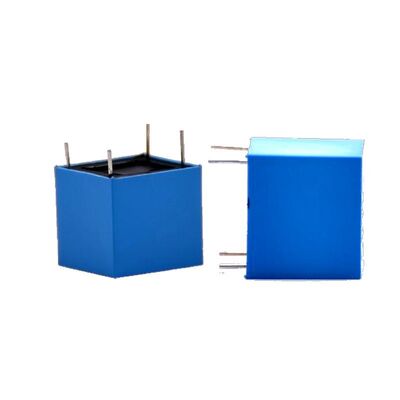

Micro Precision Voltage Transformer
The Miniature Precision Voltage Transformer is an advanced electromagnetic component engineered for accurate voltage measurement and signal conditioning in compact electronic systems. Featuring high-performance nanocrystalline soft magnetic materials, this transformer delivers minimal core loss, high permeability, and exceptional stability across diverse frequency ranges.
Key Applications
Ideal for energy metering, power quality monitoring, industrial automation, renewable energy systems, and precision instrumentation. Its compact design and reliable performance make it essential for modern smart grids and IoT-enabled devices.
Technical Specifications
Core Material: Nanocrystalline soft magnetic alloy
Frequency Range: 50 Hz - 10 kHz
Primary Voltage Range: 0-600 V (customizable)
Accuracy Class: Class 0.2 / 0.5 (IEC 61869 standard)
Operating Temperature: -40°C to +85°C
Isolation Voltage: 3 kV (min)
Linearity: ≤ ±0.1%
Dimensions: Customizable, typical size as small as 20mm x 20mm x 15mm
Mounting Options: Through-hole or surface mount (SMD)
Performance Advantages
High Accuracy and Stability
Nanocrystalline core ensures precise voltage transformation with minimal phase error and drift, maintaining performance under varying load and temperature conditions.
Compact and Lightweight
Small form factor saves valuable PCB space, making it suitable for high-density electronic designs and compact applications.
Wide Frequency Response
Reliable performance across broad frequency spectrum, supporting both power frequency and high-frequency applications.
Low Power Loss
Excellent magnetic properties significantly reduce core losses, enhancing energy efficiency in continuous operation.
Robust Isolation
High dielectric strength ensures safety and compliance with international standards for industrial and commercial applications.
Customizable Design
Flexible specifications allow adaptation to diverse customer requirements, including specific voltage ranges and mechanical configurations.
This transformer combines cutting-edge material technology with precision engineering, delivering unmatched performance for next-generation electronic systems and industrial applications.
