Etched Laser Cutting SS Sheet Geometric Fragmented Decorative Stainless Steel Panels

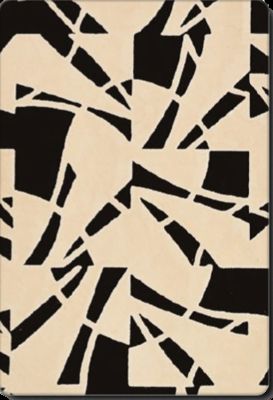

Stainless Steel Etched Geometric Fragmented Pattern Panel

Elevate your space with our premium Stainless Steel Etched Geometric Fragmented Pattern Panel. Crafted from high-grade stainless steel, this panel features a meticulously etched fragmented geometric design that adds a modern, artistic touch to any environment. Its durable, corrosion-resistant material ensures long-lasting performance, making it ideal for both indoor and outdoor applications. Whether used for wall cladding, decorative accents, or custom installations, this panel combines aesthetic appeal with unmatched functionality.

Key Features

• - Durable Material: Made from 304-grade stainless steel for excellent corrosion resistance and longevity.
• - Unique Design: Features a fragmented geometric pattern etched with precision for a visually striking effect.
• - Versatile Use: Suitable for residential, commercial, or industrial settings, including kitchens, lobbies, and facades.
• - Easy Maintenance: Resistant to stains and scratches, requiring minimal upkeep to retain its sleek appearance.
• - Customizable Options: Available in various sizes and finishes to meet specific design requirements.

Applications

Perfect for enhancing modern interiors and exteriors, this panel can be used for feature walls, backsplashes, partitions, and artistic installations. Its reflective surface and intricate pattern create depth and movement, transforming ordinary spaces into extraordinary statements. Ideal for architects, designers, and homeowners seeking a blend of sophistication and durability.

The production of colored stainless steel sheets via PVD (Physical Vapor Deposition) involves three core stages: pre-treatment, PVD coating deposition, and post-treatment, with strict parameter control throughout.

This stage ensures a clean, smooth surface for coating adhesion.

Cutting & Polishing: Cut stainless steel coils/plates to required dimensions via laser or shearing. Polish with abrasive belts/wheels to achieve finishes like mirror, brushed, or matte, and remove minor scratches.

Cleaning: First, degrease with alkaline/solvent solutions to eliminate oil and fingerprints. Then, pickle with nitric-hydrofluoric acid to remove oxide layers and polishing residues. Finally, rinse with deionized water and dry with hot air/infrared to avoid water spots.

Completed in a high-vacuum chamber to ensure coating quality.

Vacuum Setup: Load dried substrates into the chamber, then pump to 10⁻³–10⁻⁵ Pa (high vacuum). Heat substrates to 150–300°C and use argon ion bombardment for deep cleaning.

Target Sputtering & Reaction: Select targets based on color (e.g., titanium for gold, chromium for silver). Use magnetron sputtering (plasma bombards targets to release atoms) or arc ion plating (electric arc melts targets) to vaporize targets. Introduce reactive gases (nitrogen for nitrides, oxygen for oxides); target atoms react with gases to form colored compound films (e.g., TiN for rose gold) on substrates.

Thickness Control: Monitor via a quartz crystal sensor to keep coating thickness at 0.1–1 μm (too thin = poor fastness; too thick = brittleness).

This stage enhances performance and ensures compliance.

Cooling & Finishing: Cool the chamber to room temperature, release vacuum, and unload. Optionally, lightly polish coated surfaces for better gloss.

Quality Checks: Test coating hardness (≥2000 HV via Vickers tester) and adhesion (no peeling via cross-cut tester). Use a spectrophotometer to verify color consistency (ΔE ≤ 1 vs. standards).

Packaging: Wrap qualified sheets in anti-scratch film, then pack in cartons/wooden pallets for transport.

Crafted from premium-grade stainless steel, our etched geometric fragmented pattern panel delivers unmatched durability and corrosion resistance, making it ideal for both interior and exterior architectural applications. The precision-etched design captures light dynamically, creating ever-shifting visual depth that evolves with the time of day and viewing angle. Its sleek metallic finish resists fingerprints and weathering, ensuring long-term aesthetic integrity without compromising structural performance.

The fragmented geometric motif blends contemporary minimalism with artistic complexity, offering architects and designers a versatile surface solution for feature walls, elevator cladding, partitions, or façade elements. Each panel is laser-cut with micron-level accuracy, allowing seamless modular installation and scalable repetition across large surfaces. The pattern’s abstract rhythm invites interpretation while maintaining visual cohesion, enhancing spatial perception without overwhelming the environment.

Engineered for sustainability and ease of maintenance, the panel requires no chemical coatings or sealants — its natural stainless steel surface is inherently hygienic and 100% recyclable. Backed by rigorous quality control and customizable in size, finish, and perforation density, it adapts effortlessly to residential, commercial, or public installations. Whether used to define luxury interiors or bold urban exteriors, this panel transforms ordinary spaces into curated experiences of light, texture, and modern elegance.
