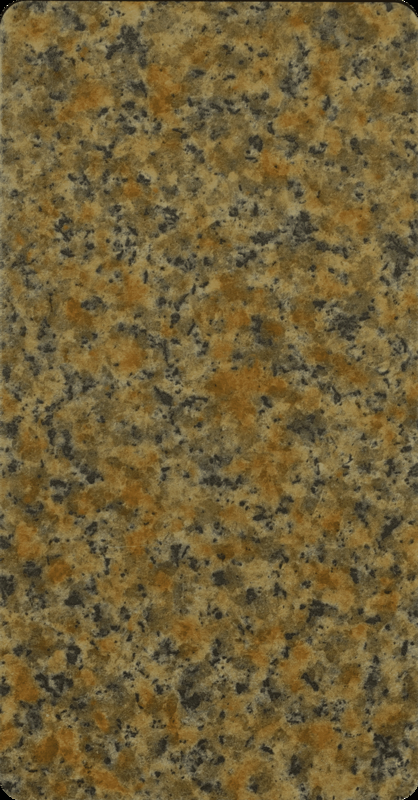

Quartz Stone Laminated Patterned Stainless Steel Sheet SS201 SS304
| Brand Name: | Mellow |
| Model Number: | 201, 202, 301, 304, 304j1, 304l, 321, 309s, 310s, 2205, 409l, 410, 410s, 420, 420j1, 420j2, 430, 439, 409l, 443, 444, etc |
| MOQ: | 50 plates |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T,D/P,D/A,Western Union |
| Supply Ability: | 5000ton/month |
Quartz Stone patterned stainless steel sheet
,SS304 patterned stainless steel sheet
,Quartz Stone laminated stainless steel sheet
| Product Name | Transfer Quartz Stone Stainless Steel Plate 201 304 316 430 Series |
|---|---|
| Place of Origin | Guangdong, China |
| Grade | 201, 304, 316, 410, 430 |
| Certification | ISO9001&ISO14001 |
| Thickness Range | 0.3mm-3.0mm |
| Tolerance | ±5% |
| Width Range | 600mm-1500mm |
| Length | 2000mm, 2438mm, 3048mm, or customized |
| Size | 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm, or customized |
| Color | Champagne, rose, bronze, black titanium, titanium gold, yellow titanium, brown, taw |
| Finish | 2B, BA, No. 4, Hairline, 8K, embossed, etched, vibration, PVD color coated, sand blasted, Anti-fingerprint |
| Color | Gold, Black, Sapphire blue, Brown, Bronze, Purple, Champagne gold, Diamond, Rose gold, Rose red, etc. |
|
Lead Time |
10 to 21 working days after the receipt of 30% deposit |
|
Processing Service |
Bending, Welding, Punching, Cutting |
|
Machines |
8k Polish Machines, Pvd Coating Machines. |
| Packing | Standard export sea-worthy packaging,Wooden pallet or according to customer's request |
| Application | Interior/exterior/architectural/bathroom decoration, elevator decoration, hotel decoration, kitchen equipment, ceiling, cabinet, kitchen sink, advertising nameplate |
This document outlines the streamlined manufacturing process for applying decorative wood grain or marble patterns onto stainless steel plates. The core technology combines a PVD vacuum coating for the base color with a thermal transfer process for the detailed pattern.
Overall Process Flowchart
Substrate Pretreatment → PVD Vacuum Coating → Thermal Transfer → Post-Processing & Packaging
Detailed Process Steps
1. Substrate Pretreatment
This critical first step prepares the stainless steel surface (typically Grade 304 or 316).
-
Mechanical Finishing: The sheet is polished to a mirror or brushed to a hairline finish, defining the base gloss and texture.
-
Cleaning & Drying: The plate undergoes thorough chemical cleaning and drying to remove all oils and contaminants. A perfectly clean surface is essential for optimal PVD coating adhesion.
2. PVD Vacuum Coating
This step applies a hard, colored base layer.
-
Loading & Vacuum: Pretreated sheets are loaded into a PVD chamber, which is sealed and pumped to a high vacuum.
-
Plasma Etching & Coating: An argon plasma cleans the surface. Then, metal targets (e.g., Titanium) are ionized. By introducing reaction gases like Nitrogen, a hard, colored layer (e.g., Titanium Nitride) is deposited on the steel surface, creating colors like Champagne Gold or Black Titanium.
3. Thermal Transfer Process
This step applies the final wood or marble pattern.
-
Film Application: A specialized PET film, printed with the desired pattern, is applied to the PVD-coated surface.
-
Heating & Transfer: The sheet enters a thermal transfer oven. Under controlled heat and pressure, the ink on the film sublimates and permanently penetrates the PVD layer.
-
Cooling & Peel-off: After cooling, the carrier PET film is peeled away, revealing the finished pattern.
4. Post-Processing & Packaging
The final steps enhance durability and ensure quality.
-
Protective Coating: A clear, protective layer is applied to guard against scratches and corrosion.
-
Quality Inspection: Each sheet is inspected for color, pattern clarity, adhesion, and surface defects.
-
Packaging: A protective film is applied, and sheets are packed securely for shipment.
The Transfer Quartz Stone Stainless Steel Plate series offers a superior blend of aesthetics and unmatched durability. Its most prominent feature is the stunning quartz stone finish, which is permanently fused onto the stainless steel substrate through an advanced transfer printing process. This creates a realistic, high-resolution stone texture that is far more scratch, abrasion, and impact-resistant than traditional painted or laminated surfaces. The result is a product that provides the sophisticated, natural look of stone with the inherent strength and resilience of metal, making it ideal for high-traffic areas and applications demanding both beauty and long-term performance.
Beyond its robust physical properties, this series provides exceptional versatility and reliability, thanks to the availability of four stainless steel grades: 201, 304, 316, and 430. This allows for tailored solutions based on environmental needs. The 304 and 316 grades offer excellent corrosion resistance, with 316 providing superior performance in harsh, saline environments, making it perfect for coastal architecture or chemical plants. The 201 grade offers a cost-effective solution for interior applications, while the 430 ferritic grade provides good formability and resistance to nitric acid. This range ensures there is an optimal choice for everything from interior wall cladding and elevator cabins to exterior building facades and industrial kitchens.
Finally, this product line is designed for practical, long-term value. The non-porous, sealed surface is exceptionally easy to clean and maintain, resisting stains, bacteria, and moisture. It is also highly fire-resistant and environmentally stable, capable of withstanding extreme temperatures and UV exposure without fading, warping, or delaminating. By combining the low maintenance and longevity of stainless steel with the high-end visual appeal of natural stone, these plates significantly reduce lifecycle costs and provide a durable, sustainable building solution that remains visually compelling for years to come.
