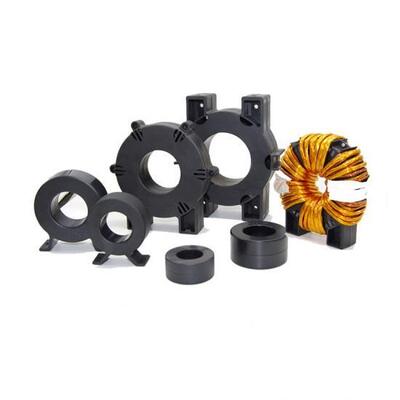

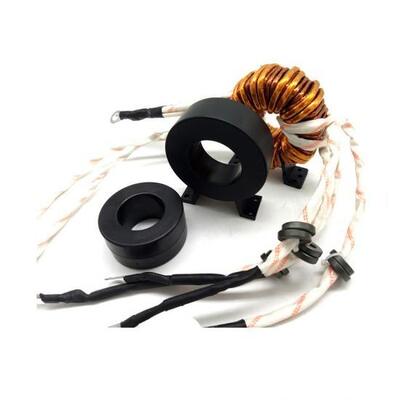

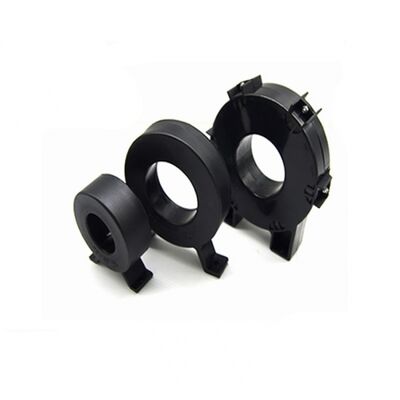

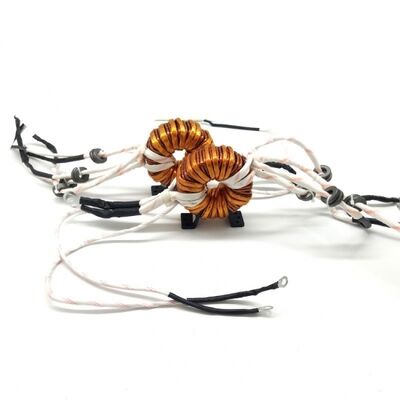

High Frequency Transformer Nanocrystalline Magnetic Core with High Saturation Induction Low Magnetic Loss and High Permeability
|
High Frequency Transformer Nanocrystalline Magnetic Core with High Saturation Induction Low Magnetic Loss and High Permeability
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
High Saturation Induction Nanocrystalline Magnetic Core
,Low Magnetic Loss Transformer Core
,High Permeability High Frequency Transformer
Performance parameters:
High saturation induction performance reduces transformer volume
High permeability, low coercivity, improving transformer efficiency
Low power consumption, reducing copper loss
Low magnetic loss, reducing transformer temperature rise
Good thermal stability, able to work in the temperature range of -55 ° C to+130 ° C for a long time
Low magnetic loss: L P<6W/Kg @ 20KHz, 0.5T, P<9W/Kg @ 20KHz, 1T, P<5W/Kg @ 35KHz,0.5T, P<14W/Kg @ 35KHz,1T
High saturation magnetic stretchability Bs=1.4T, low residual magnetic field density Br<10mT, low coercivity HC<1A/m, u=10000
| Basic parameters | Nanocrystalline magnetic core | Iron oxide iron |
| Saturated magnetostrictive induction Bs (T) | 1.25 | 0.5 |
| Residual magnetic field density Br (T) (20KHz) | <0.20 | 0.2 |
| Magnetic loss (20KHz, 0.2T) (W/kg) | <3.4 | 7.5 |
| Magnetic loss (20KHz, 0.5T) (W/kg) | <35 | / |
| Magnetic loss (20KHz, 0.3T) (W/kg) | <40 | / |
| Permeability (20KHz) (Ge//Oe) | >2x10⁴ | 2x10³ |
| Coercive force (A/m) | <1.60 | 6 |
| Saturation magnetostriction coefficient λs | <2x10(-6) | 4x10(-6) |
| Resistivity (µΩcm) | 80 | 1X10^6 |
| Curie temperature (°C) | 570 | <600 |
| Operational efficiency | >0.70 | --- |
Product specifications:
High frequency power transformer cores are mainly used in inverter welding machines and solar inverters.
Main use:
Inverter welding machine
X-ray and laser source power supply
Communication power supply
High frequency heating system
Electrolysis and electroplating power supply
