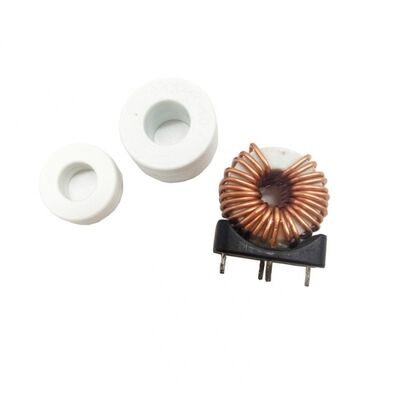

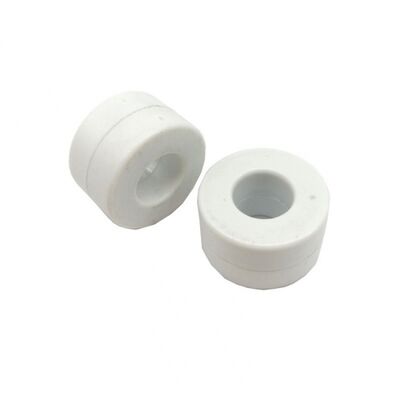

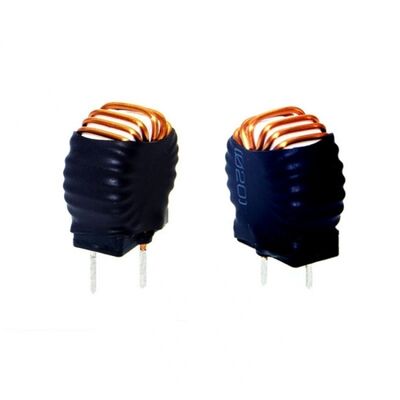

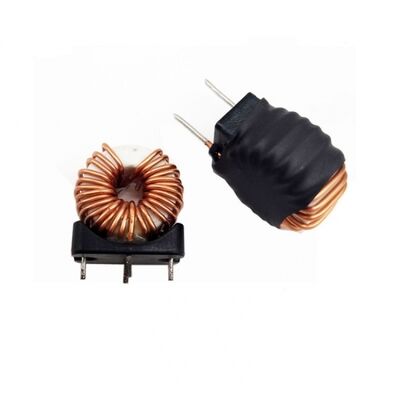

Amorphous Magnetic Core for Car Audio with High Saturation Magnetic Induction, Low Magnetic Loss, and Good Frequency Performance
|
Amorphous Magnetic Core for Car Audio with High Saturation Magnetic Induction, Low Magnetic Loss, and Good Frequency Performance
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
High Saturation Magnetic Induction Amorphous Magnetic Core
,Low Magnetic Loss Magnetic Core
,Good Frequency Performance Inductor Core
Product performance:
High saturation magnetic induction Bs
Compared to other materials, magnetic loss is low
Good frequency and temperature performance, suitable for 3000KHz
High DC bias characteristics
Low magnetic leakage rate
Compared to other materials, it is lighter in weight and smaller in size
| Basic parameters | |
| Density | 7.3g/cm³ |
| Curie temperature | Tc =410°C |
| Essence temperature | Tx =530°C |
| Saturation |
Bs= 1.56T |
| Resistivity | ρ=130Ω-cm |
| Saturated magnetic stretching performance | λs=27x10-6 |
Product Description:
We provide amorphous magnetic cores for automotive audio systems and perform wire winding processing.
Standard magnetic core specifications
The magnetic core can be customized according to the customer's specification drawings, and the required parameters for customization include:
1. Core size, shell size
2. Parameter performance AL @ DC bias=0A; And other AL values under different DC currents
3. Copper wire diameter
Main use:
SMS output choke
DC/DC conversion choke coil
Ordinary mode choke
Choke for adapters and battery chargers
PFC choke
Car audio system
