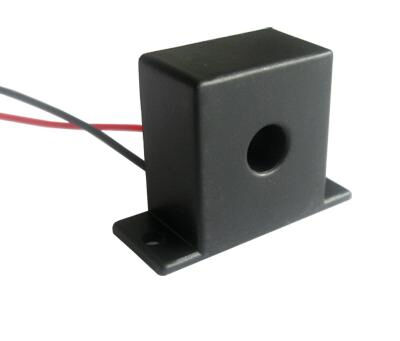

Base Mounted Miniature Current Transformer with Nanocrystalline Core, High Accuracy Class 0.2, and Compact Design
|
Base Mounted Miniature Current Transformer with Nanocrystalline Core, High Accuracy Class 0.2, and Compact Design
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001&ISO14001
Delivery Time:
10-15 work days
Highlight:
Nanocrystalline Core Current Transformer
,Compact Design Instrument Transformer
,High Accuracy Class 0.2 Miniature Transformer
Product Description
Product Introduction
The Base Mounted Miniature Current Transformer is a compact, high-performance device designed for precise current measurement and monitoring in a wide range of electrical applications. Utilizing nanocrystalline soft magnetic materials, it ensures high accuracy, minimal energy loss, and excellent performance even in demanding environments. This transformer is ideal for energy metering, power quality analysis, protection systems, and industrial automation setups. Its compact design allows for easy integration into tight spaces while maintaining reliable performance.
Product Parameters
- Core Material: Nanocrystalline soft magnetic alloy
- Primary Current Range: 1 A to 100 A (customizable upon request)
- Secondary Current Output: 1 A or 5 A (standard options)
- Accuracy Class: Class 0.2, 0.5, or 1.0 (as per IEC 61869-2 standards)
- Frequency Range: 50/60 Hz (extendable up to 400 Hz)
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 3 kV (RMS, 50 Hz, 1 minute)
- Mounting Style: Standard DIN rail or screw base mounting
- Dimensions: Compact design, typically 30 mm x 30 mm x 40 mm
Product Advantages
- Superior Accuracy: Thanks to nanocrystalline core technology, the transformer delivers highly precise current measurements, minimizing errors in energy metering and system monitoring.
- Compact and Lightweight: Its miniature design makes it ideal for space-constrained applications without compromising performance.
- Low Energy Loss: Nanocrystalline materials reduce hysteresis and eddy current losses, enhancing overall energy efficiency.
- Wide Frequency and Temperature Range: Suitable for diverse industrial and commercial environments, ensuring stable operation under varying conditions.
- High Reliability: Excellent thermal stability and robust construction ensure long-term performance and durability.
- Easy Integration: Designed for straightforward installation with standard mounting options, reducing setup time and costs.
