ZF-JACK Series-switching Current Transformer
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001&ISO14001
Delivery Time:
10-15 work days
Product Description
Product Introduction

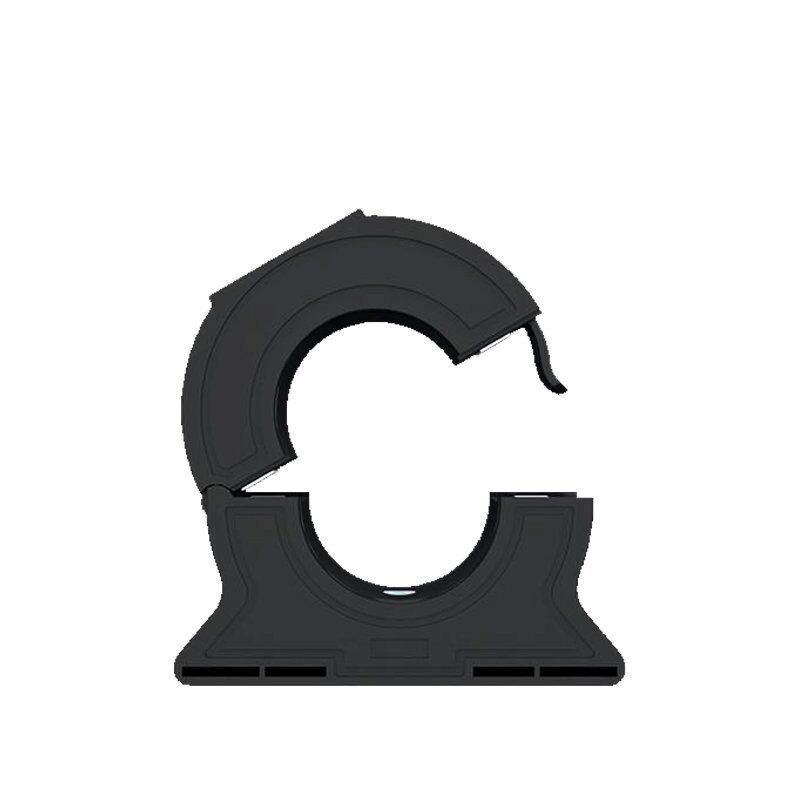

The ZF-JACK series switching current transformer is a high-performance component engineered for precision current sensing and monitoring in power electronic systems. Utilizing advanced nanocrystalline soft magnetic materials, this transformer ensures exceptional magnetic permeability, low core loss, and outstanding thermal stability. It is ideal for applications in switched-mode power supplies (SMPS), renewable energy systems, industrial motor drives, and electric vehicle charging infrastructure. The compact design and robust performance make it a reliable solution for improving energy efficiency and system reliability.
Product Advantages
- Superior Performance: Nanocrystalline core ensures minimal hysteresis and eddy current losses, enabling high accuracy across a wide frequency spectrum.
- Compact and Lightweight: Advanced material properties allow for a smaller form factor without sacrificing performance, saving space in high-density PCB layouts.
- High Thermal Stability: Maintains consistent performance under extreme temperature conditions, ensuring long-term reliability.
- Energy Efficiency: Low core loss contributes to reduced energy waste, making it suitable for eco-friendly and high-efficiency applications.
- Wide Compatibility: Compatible with a variety of industrial and commercial systems, including renewable energy inverters and automotive power systems.
- Customizable: Offers flexibility in current ratings and mechanical designs to meet specific application requirements.

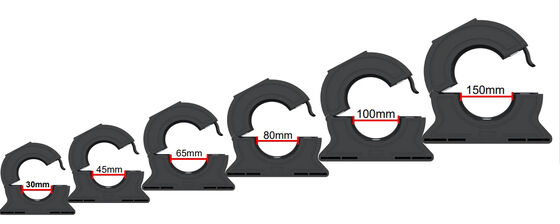

产品尺寸:
| 型号规格 | 外形尺寸 | |||||
| Φ | A | B | C | D | G | |
| ZF-JCTK45 | 45mm | 106 | 82 | 28 | 92 | M6 |
| ZF-JCTK65 | 65mm | 126 | 102 | 28 | 108 | M6 |
| ZF-JCTK80 | 80mm | 138 | 112 | 28 | 120 | M6 |
| ZF-JCTK100 | 100mm | 160 | 132 | 28 | 142 | M6 |
产品参数:
| 产品型号 | 电流比 | 额定负荷 (V/A) | 功率因素 COSØ | 精度误差 | 输出方式 | 工作频率 |
| ZF-JCTK45 | 100/5 | 0.1VA | 1.0 | 1% | 1.5 平方引线 | 50- 400HZ |
| 200/5 | 0.1VA | 1.0 | 0.5% | |||
| 300/5 | 1VA | 0.8 | 0.5% | |||
| 400/5 | 1VA | 0.8 | 0.5% | |||
| ZF-JCTK65 | 300/5 | 1VA | 0.8 | 0.5% | ||
| 400/5 | 1.5VA | 0.8 | 0.5% | |||
| 500/5 | 2.5VA | 0.8 | 0.5% | |||
| 600/5 | 2.5VA | 0.8 | 0.5% | |||
| ZF-JCTK80 | 400/5 | 2.5VA | 0.8 | 0.5% | ||
| 500/5 | 2.5VA | 0.8 | 0.5% | |||
| 600/5 | 2.5VA | 0.8 | 0.5% | |||
| 800/5 | 5VA | 0.8 | 0.5% | |||
| ZF-JCTK100 | 600/5 | 2.5VA | 0.8 | 0.5% | ||
| 800/5 | 5 | 0.8 | 0.5% | |||
| 1000/5 | 5 | 0.8 | 0.5% | |||
| 1500/5 | 5 | 0.8 | 0.5% |
