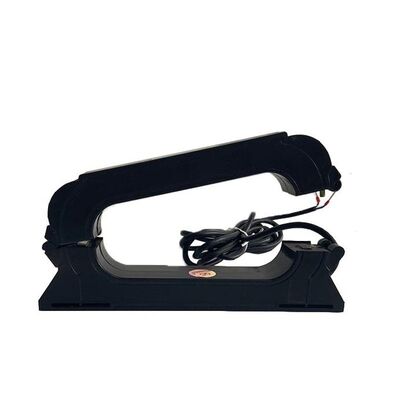

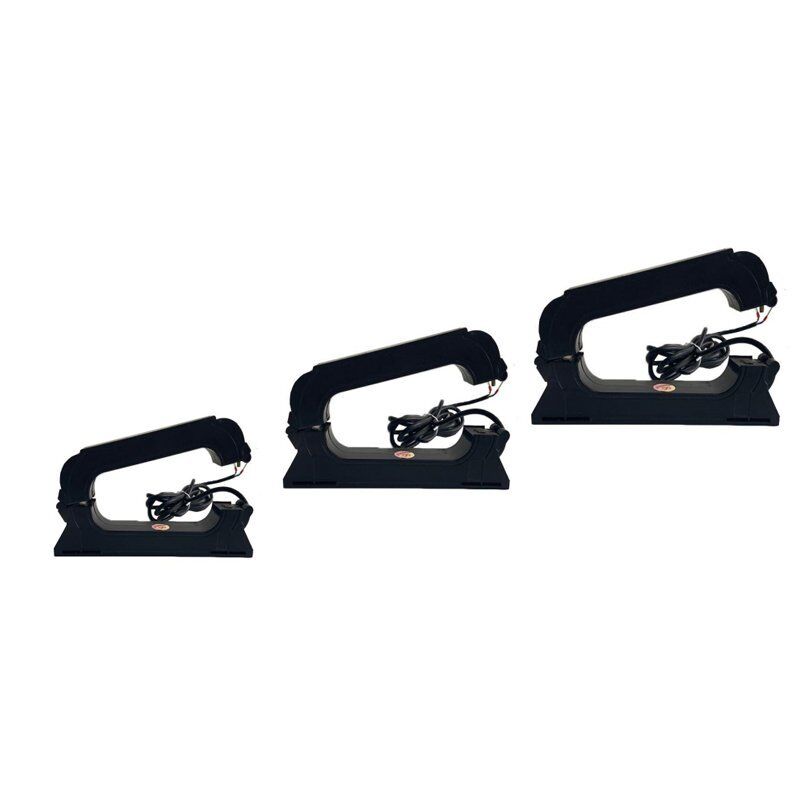

ZF-CTK Series Rectangular Opening Residual Current Transformer
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001&ISO14001
Delivery Time:
10-15 work days
Product Description
Product Introduction
The ZF-CTK series rectangular opening residual current transformer is a high-performance sensing device designed for efficient and reliable detection of residual currents in electrical systems. It features a unique rectangular split-core design, enabling easy installation and removal without disconnecting the primary circuit. This makes it ideal for retrofit applications, energy monitoring, and ground fault protection in commercial, industrial, and residential settings. With its advanced construction and precise measurement capabilities, the ZF-CTK ensures enhanced safety and operational efficiency.
Product Advantages
- High Sensitivity and Accuracy: The nanocrystalline core ensures exceptional magnetic permeability and low core loss, enabling precise detection of minute residual currents.
- Easy Installation: The rectangular split-core design allows for quick, tool-free installation around conductors, minimizing downtime.
- Durability and Reliability: Excellent thermal stability and resistance to aging ensure consistent performance in harsh environments.
- Wide Compatibility: Suitable for use with energy meters, protection relays, and monitoring systems across various applications.
- Cost-Effective: Reduces installation and maintenance costs while providing long-term operational efficiency.
产品规格:
| 规格型号 | 主回路电流 | 外形尺寸 | ||||||
| A | B | C | D | E | F | G | ||
| CTK-F-1025 | ＜100 | 155 | 62 | 105 | 28 | 148 | 5 | 28 |
| CTK-F-1434 | ＜225 | 205 | 75 | 145 | 33 | 195 | 5 | 28 |
| CTK-F-1834 | ＜400 | 245 | 75 | 184 | 33 | 228 | 5 | 28 |
| CTK-F-2246 | ＜630 | 285 | 96 | 228 | 48 | 288 | 5 | 28 |
| ＜1250 | 388 | 110 | 318 | 58 | 301 | 5 | 28 | |
产品参数:
| 额定一次电流 | 1A | 耐压强度 | AC2KV/min |
| 额定二次电流 | 0.5mA—1mA | 绝缘电阻 | DC500V/100mΩ |
| 准确级 | 0.5—1 | 连续热电流 | 2A |
| 工作频率 | 50-400Hz | 工作温度 | 负15℃-50℃ |
