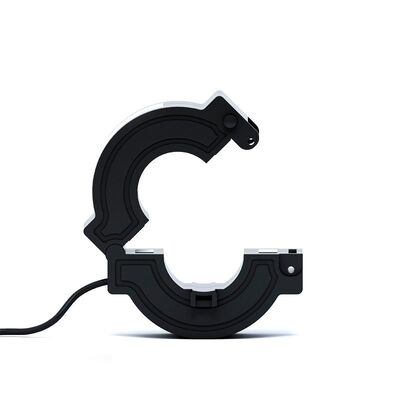

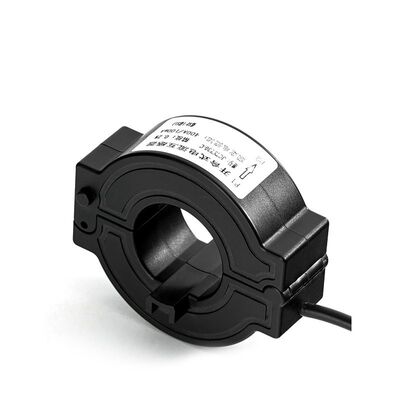

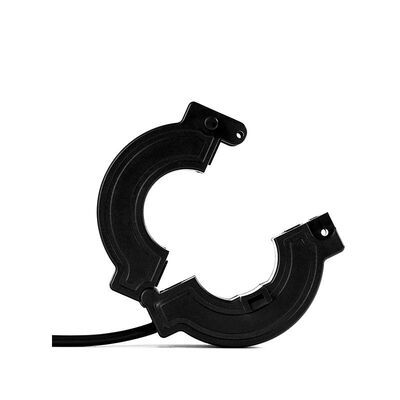

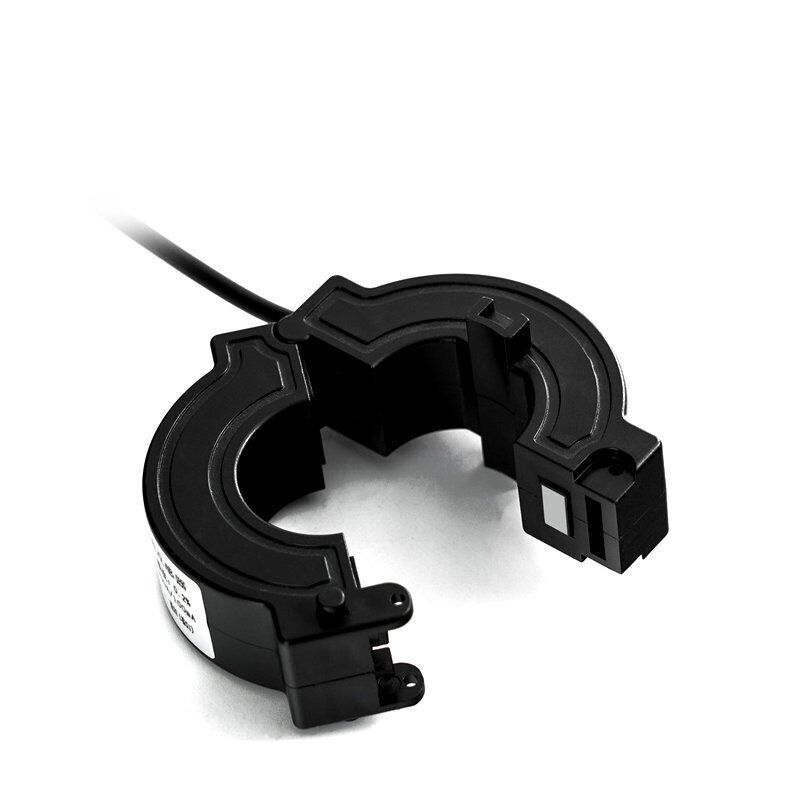

Round ZF-KY Switching Residual Current Transformer
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001&ISO14001
Delivery Time:
10-15 work days
Product Description
Product Introduction
The Round ZF-KY Switching Residual Current Transformer is an advanced electromagnetic component designed for precise detection and monitoring of residual currents in electrical systems. Utilizing high-performance nanocrystalline soft magnetic materials, it ensures exceptional sensitivity and accuracy in identifying leakage currents, ground faults, or imbalances in AC/DC systems. This transformer is widely used in industrial power distribution, renewable energy systems, electric vehicle charging stations, and smart grid applications, providing critical protection for equipment and personnel safety.
Product Advantages
- High Sensitivity and Accuracy: The nanocrystalline core enables ultra-responsive detection of minute residual currents, ensuring rapid fault identification and enhanced system safety.
- Wide Frequency Compatibility: Performs reliably across a broad frequency spectrum, making it suitable for diverse applications, including high-frequency switching systems.
- Excellent Temperature Stability: Maintains consistent performance under extreme temperatures, ideal for harsh industrial environments.
- Compact and Durable: The round form factor allows for space-efficient integration, while the robust design ensures long-term reliability.
- Energy Efficient: Low core losses contribute to reduced energy consumption and improved overall system efficiency.
- Compliance and Safety: Certified to international standards, guaranteeing safe operation and interoperability in global markets.
产品规格:
| 型号规格 | 外形尺寸 | ||||
| Φ | A | B | C | D | |
| ZF-CTKY30-C | 30 | 73.5 | 63.5 | 24 | 38 |
| ZF-CTKY45-C | 45 | 95.5 | 84 | 24 | 38 |
| ZF-CTKY65-C | 65 | 120 | 106 | 24 | 38 |
产品参数:
| 产品型号 | ZF-JCTKY30-C/45- C/65-C | 精度 | 0.2%-0.5%- 1% |
| 工作频率 | 20－20KHZ | 隔离电压 | 2500Vac |
| 电流比 | 1000/1,2000/1 | 用途 | 剩余电流测量 信号采集 |
| 额定输入电 流 | 1A | 安装固定方 式 | 穿芯式,扎带绑 扎固定 |
| 额定输出电 流 | 1mA,0.5mA | 接线方式 | 护套线1.5米 |
| 主回路电流 | 0-63A/0-160A/0- 250A | 工作温度 | 负12℃-45℃ |
