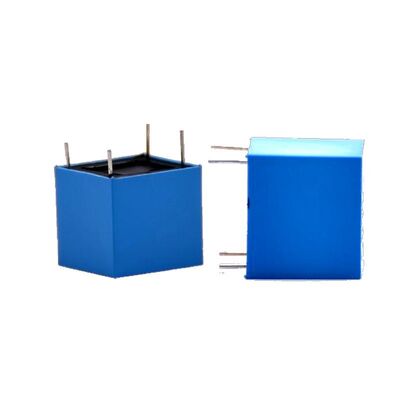

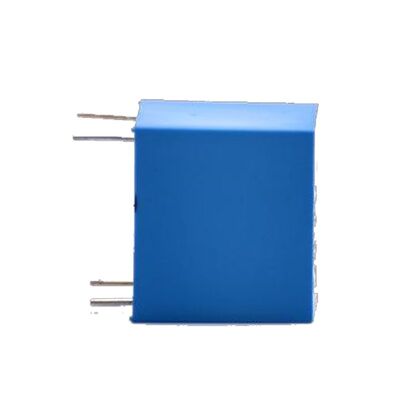

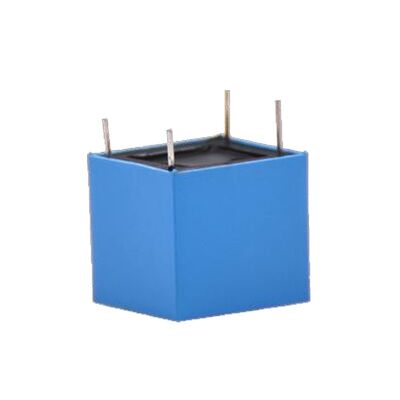

High Precision Compact Design Bus-Embedded Miniature Current Transformer with Nanocrystalline Core
|
High Precision Compact Design Bus-Embedded Miniature Current Transformer with Nanocrystalline Core
| Price: | Negotiable |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500ton/month |
High Precision Micro Current Transformer
,Compact Design Built-in Busbar Current Transformer
,Nanocrystalline Core Bus-Embedded Miniature Current Transformer
Product Introduction:
The Bus-Embedded Miniature Current Transformer is a high-precision sensing device designed for compact and efficient current measurement in electrical systems. It utilizes advanced nanocrystalline soft magnetic materials to ensure exceptional performance in limited spaces. This product is ideal for integration into power distribution units, energy management systems, and industrial automation equipment, where accurate current monitoring is critical. Its innovative design allows seamless embedding into busbars, minimizing installation complexity while maximizing reliability.
Product Parameters:
- Core Material: Nanocrystalline soft magnetic alloy
- Accuracy Class: 0.5 to 1.0 (depending on model)
- Frequency Range: 50/60 Hz to 10 kHz
- Primary Current Range: 1 A to 500 A
- Secondary Output: 1 A or 5 A standard (customizable)
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: Up to 3 kV
- Size: Compact, customizable dimensions for embedded applications
- Compliance: Meets IEC 61869 and UL standards
Product Advantages:
- High Precision and Linearity: Nanocrystalline core ensures minimal hysteresis and core losses, providing accurate measurements even under low current conditions.
- Space-Saving Design: Its miniature and embeddable form factor reduces the need for external mounting, optimizing space in crowded electrical panels.
- Enhanced Reliability: Excellent thermal stability and resistance to environmental factors ensure long-term performance in demanding applications.
- Energy Efficiency: Low power loss contributes to overall system efficiency, reducing operational costs.
- Easy Integration: Designed for straightforward embedding into busbars, simplifying installation and maintenance processes.
- Customization Options: Flexible specifications allow tailoring to specific client requirements, ensuring optimal compatibility with existing systems.
This product is an ideal solution for modern electrical systems seeking compact, reliable, and high-accuracy current sensing.
