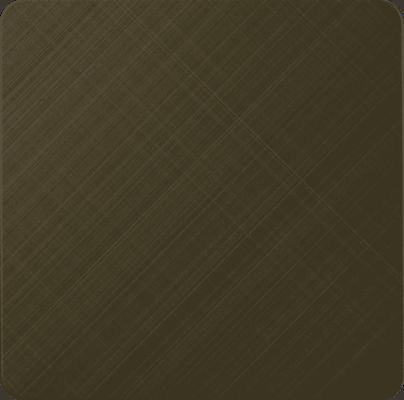

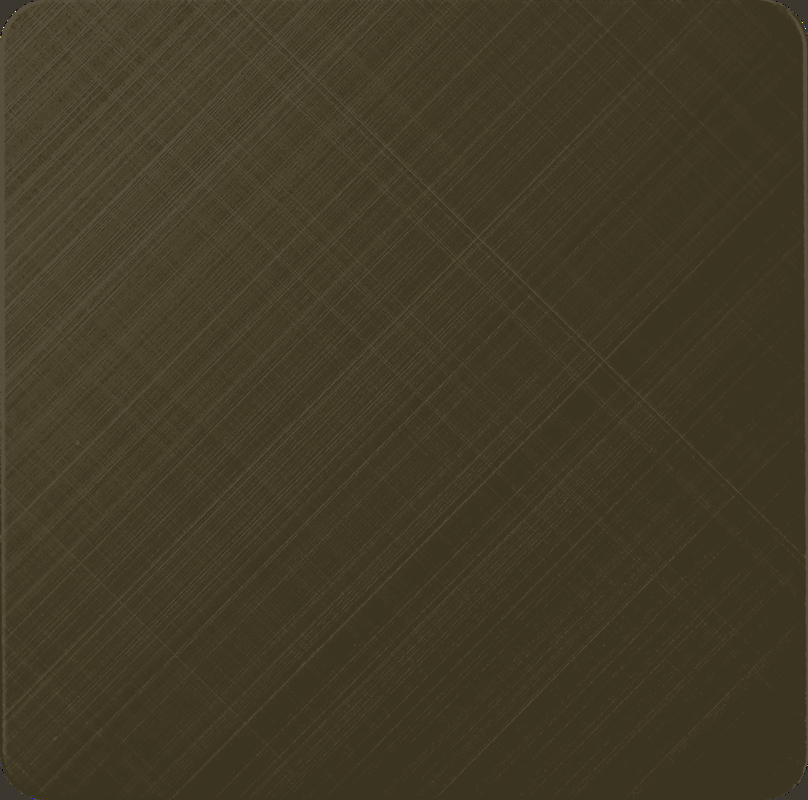

Cross Grained Bronze 2mm Stainless Steel Plate 430 SS Sheet Oil Plate
| Brand Name: | Mellow |
| Model Number: | 201, 202, 301, 304, 304j1, 304l, 321, 309s, 310s, 2205, 409l, 410, 410s, 420, 420j1, 420j2, 430, 439, 409l, 443, 444, etc |
| MOQ: | 50 plates |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T,D/P,D/A,Western Union |
| Supply Ability: | 5000ton/month |
Cross Grained 2mm stainless steel plate
,430 2mm stainless steel plate
,Cross Grained 430 ss sheet
Cross-Grained Bronze Nano-Color Oil Plate (201, 304, 316, 430 Stainless Steel)
| Product Name | 商品名称 |
|---|---|
| Place of Origin | Guangdong, China |
| Grade | 201, 304, 316, 410, 430 |
| Certification | ISO9001&ISO14001 |
| Thickness Range | 0.3mm-3.0mm |
| Tolerance | ±5% |
| Width Range | 600mm-1500mm |
| Length | 2000mm, 2438mm, 3048mm, or customized |
| Size | 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm, or customized |
| Color | Champagne, rose, bronze, black titanium, titanium gold, yellow titanium, brown, taw |
| Finish | 2B, BA, No. 4, Hairline, 8K, embossed, etched, vibration, PVD color coated, sand blasted, Anti-fingerprint |
| Color | Gold, Black, Sapphire blue, Brown, Bronze, Purple, Champagne gold, Diamond, Rose gold, Rose red, etc. |
|
Lead Time |
10 to 21 working days after the receipt of 30% deposit |
|
Processing Service |
Bending, Welding, Punching, Cutting |
|
Machines |
8k Polish Machines, Pvd Coating Machines. |
| Packing | Standard export sea-worthy packaging,Wooden pallet or according to customer's request |
| Application | Interior/exterior/architectural/bathroom decoration, elevator decoration, hotel decoration, kitchen equipment, ceiling, cabinet, kitchen sink, advertising nameplate |
The production of colored stainless steel sheets via PVD (Physical Vapor Deposition) involves three core stages: pre-treatment, PVD coating deposition, and post-treatment, with strict parameter control throughout.
This stage ensures a clean, smooth surface for coating adhesion.
Cutting & Polishing: Cut stainless steel coils/plates to required dimensions via laser or shearing. Polish with abrasive belts/wheels to achieve finishes like mirror, brushed, or matte, and remove minor scratches.
Cleaning: First, degrease with alkaline/solvent solutions to eliminate oil and fingerprints. Then, pickle with nitric-hydrofluoric acid to remove oxide layers and polishing residues. Finally, rinse with deionized water and dry with hot air/infrared to avoid water spots.
Completed in a high-vacuum chamber to ensure coating quality.
Vacuum Setup: Load dried substrates into the chamber, then pump to 10⁻³–10⁻⁵ Pa (high vacuum). Heat substrates to 150–300°C and use argon ion bombardment for deep cleaning.
Target Sputtering & Reaction: Select targets based on color (e.g., titanium for gold, chromium for silver). Use magnetron sputtering (plasma bombards targets to release atoms) or arc ion plating (electric arc melts targets) to vaporize targets. Introduce reactive gases (nitrogen for nitrides, oxygen for oxides); target atoms react with gases to form colored compound films (e.g., TiN for rose gold) on substrates.
Thickness Control: Monitor via a quartz crystal sensor to keep coating thickness at 0.1–1 μm (too thin = poor fastness; too thick = brittleness).
This stage enhances performance and ensures compliance.
Cooling & Finishing: Cool the chamber to room temperature, release vacuum, and unload. Optionally, lightly polish coated surfaces for better gloss.
Quality Checks: Test coating hardness (≥2000 HV via Vickers tester) and adhesion (no peeling via cross-cut tester). Use a spectrophotometer to verify color consistency (ΔE ≤ 1 vs. standards).
Packaging: Wrap qualified sheets in anti-scratch film, then pack in cartons/wooden pallets for transport.
Paragraph 1: Superior Material Performance and Corrosion Resistance
The CROSS-GRAIN BRONZE NANO-COLOR OIL PLATE, crafted from premium grades 201, 304, 316, and 430 stainless steel, delivers exceptional durability and corrosion resistance tailored to diverse industrial needs. Grades 304 and 316, renowned for their austenitic structure, excel in harsh environments—304 withstands oxidizing acids and alkalis, while 316’s added molybdenum ensures superior protection against chloride-induced corrosion, making it ideal for marine and chemical applications. Grade 430, with its high chromium content (11.5–14%), offers robust resistance to atmospheric and oxidative corrosion, thriving in high-temperature settings up to 650°C. Grade 201, a cost-effective alternative, provides reliable performance for general-purpose use. The CROSS-GRAIN texture enhances surface adhesion, ensuring the nano-color oil coating bonds firmly to the base metal. This coating, a nanotechnology-driven barrier, seals the bronze’s natural golden-yellow hue, preventing rust, wear, and UV degradation. Together, these features create a product that combines aesthetic appeal with industrial-grade resilience, ensuring longevity even in demanding conditions such as coastal installations, food processing plants, and high-heat machinery.
Paragraph 2: Advanced Nano-Color Oil Coating and Aesthetic Versatility
The nano-color oil coating on the CROSS-GRAIN BRONZE NANO-COLOR OIL PLATE is a game-changer in surface protection and visual excellence. This cutting-edge layer not only preserves the bronze’s iconic golden-yellow luster but also adds a scratch-resistant, self-healing quality that resists fading, abrasion, and chemical exposure. Unlike traditional coatings, the nano-technology ensures uniform color distribution and seamless adhesion to the CROSS-GRAIN texture, eliminating peeling or flaking risks. The oil plate’s finish options—mirror, matte, and brushed—cater to diverse design preferences, from sleek architectural façades to rustic industrial equipment. The coating’s UV-blocking properties prevent discoloration, maintaining the bronze’s vibrancy under prolonged sunlight, while its anti-pollution barrier resists urban grime and moisture. This versatility makes the product suitable for high-end applications such as luxury signage, premium kitchenware, and electronic enclosures, where both aesthetics and durability are paramount. By merging the timeless elegance of bronze with the protective power of nano-engineered coatings, this product elevates the standard for visually striking, long-lasting materials in both commercial and industrial sectors.
Paragraph 3: Cost-Effective Solutions and Industrial Adaptability
The CROSS-GRAIN BRONZE NANO-COLOR OIL PLATE strikes an optimal balance between performance and affordability, offering a smart investment for businesses seeking durable, low-maintenance materials. Grade 201 provides a budget-friendly option without sacrificing essential corrosion resistance, ideal for non-critical applications where cost efficiency is key. Grades 304 and 316, though slightly more expensive, deliver unmatched longevity in corrosive environments, reducing replacement costs over time. Grade 430, with its exceptional heat resistance (up to 800°C) and affordability, is perfect for high-temperature applications like exhaust systems and industrial furnaces. The CROSS-GRAIN texture and nano-coating simplify maintenance, as the surface resists staining and requires minimal cleaning. Additionally, the material’s machinability and weldability streamline fabrication, lowering production costs and lead times. Whether used in architectural cladding, automotive trims, or heavy-duty machinery, this product minimizes operational downtime and maintenance expenses. By combining the strength of stainless steel with the protective brilliance of nano-color oil technology, the CROSS-GRAIN BRONZE NANO-COLOR OIL PLATE offers a reliable, cost-effective solution for industries demanding both performance and value.
